PaintMaster Parking

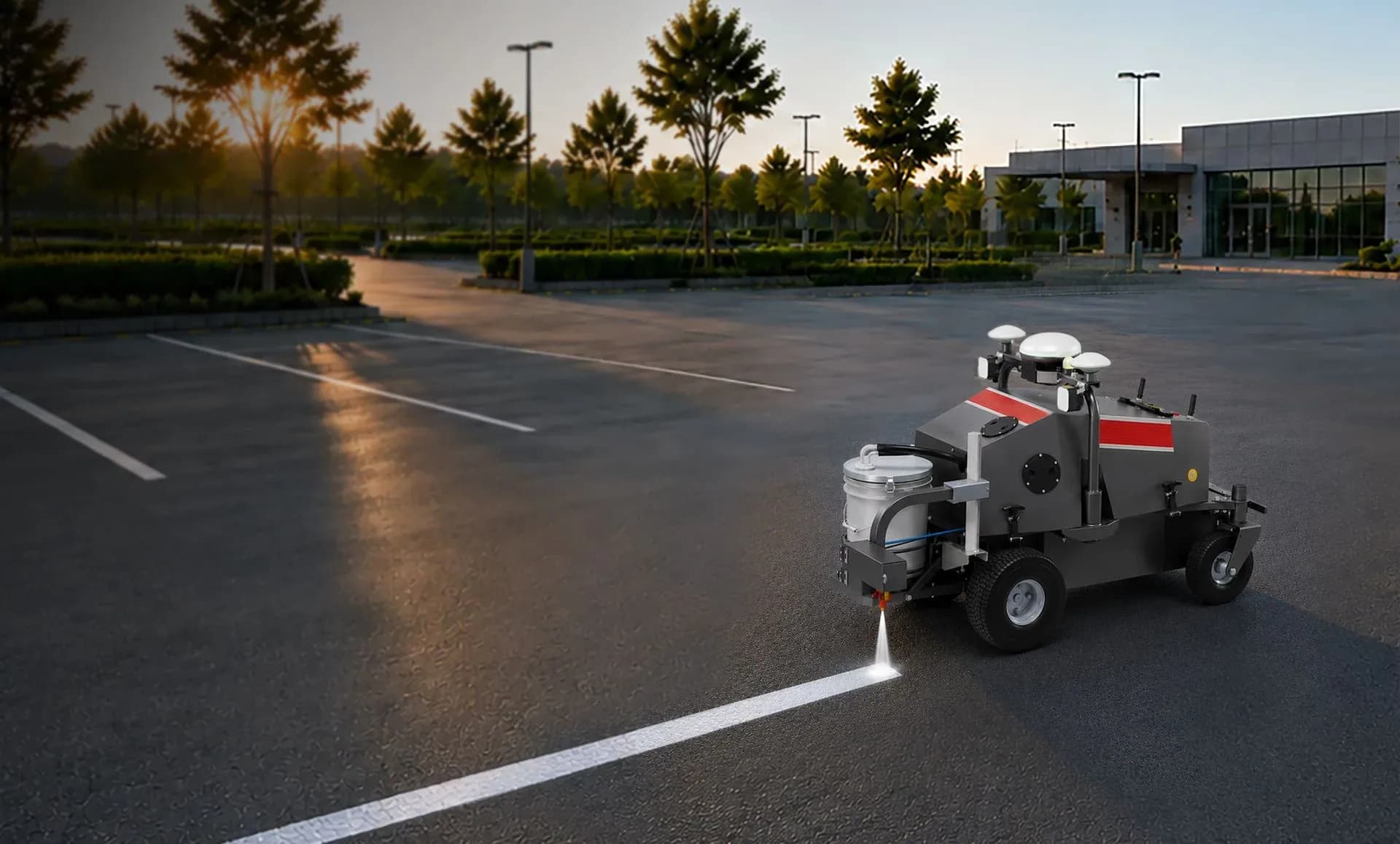

FJD PaintMaster Parking
From Site Capture to Professional Parking Lot Line Marking

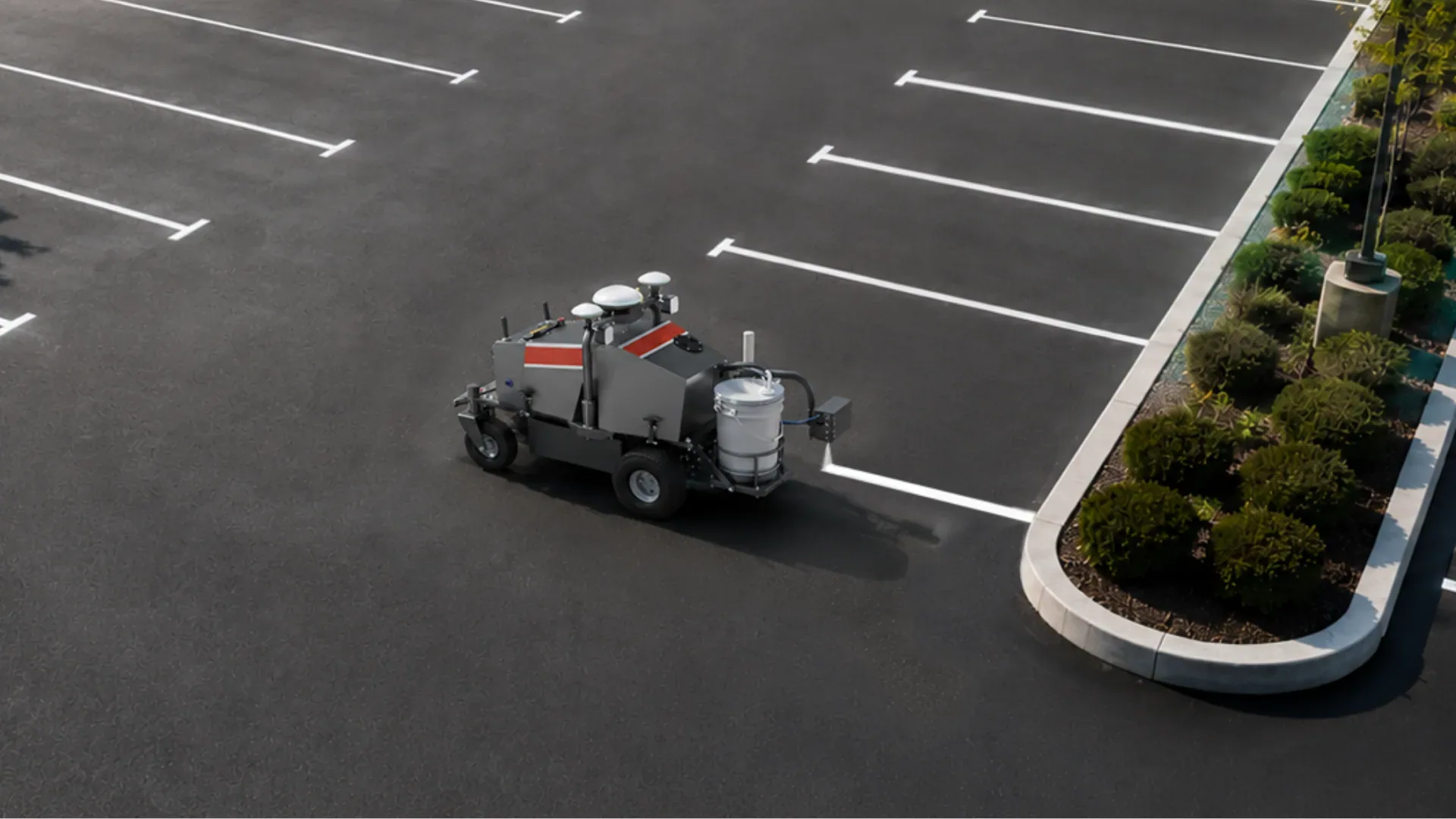

Less Labor. Faster Striping.
Autonomous marking that scales from a single lot to a multi-site fleet.

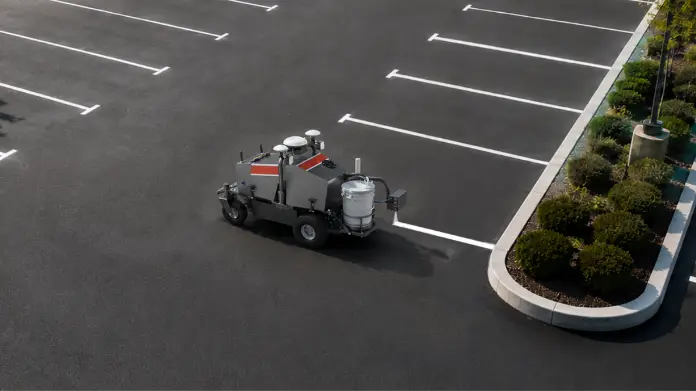

Autonomous Marking
Follows planned routes to reduce repetitive manual work on parking lot striping jobs.
Fast Site Capture

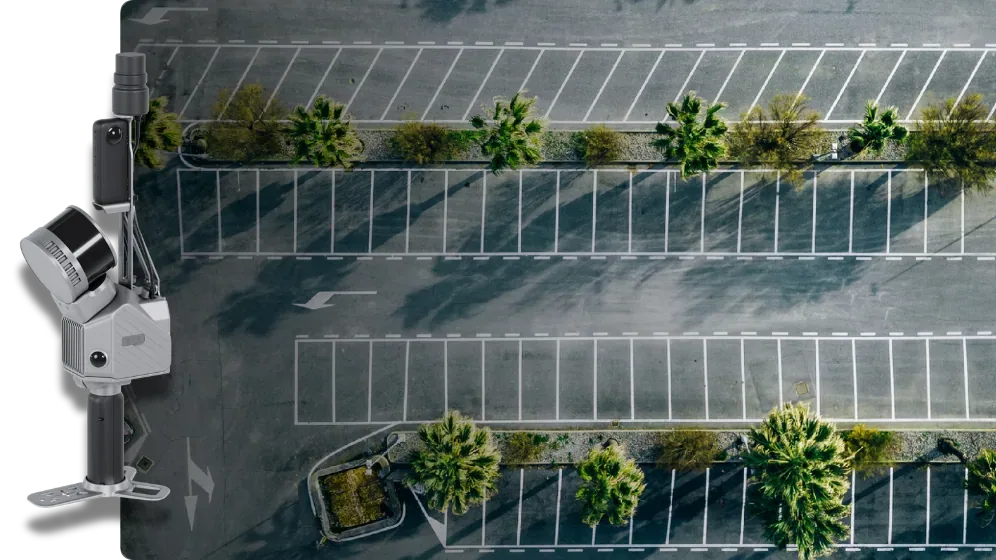

Use the FJD Trion S2 Max scanner to capture layout data faster and reduce measuring, pre-marking, and repeated checks.

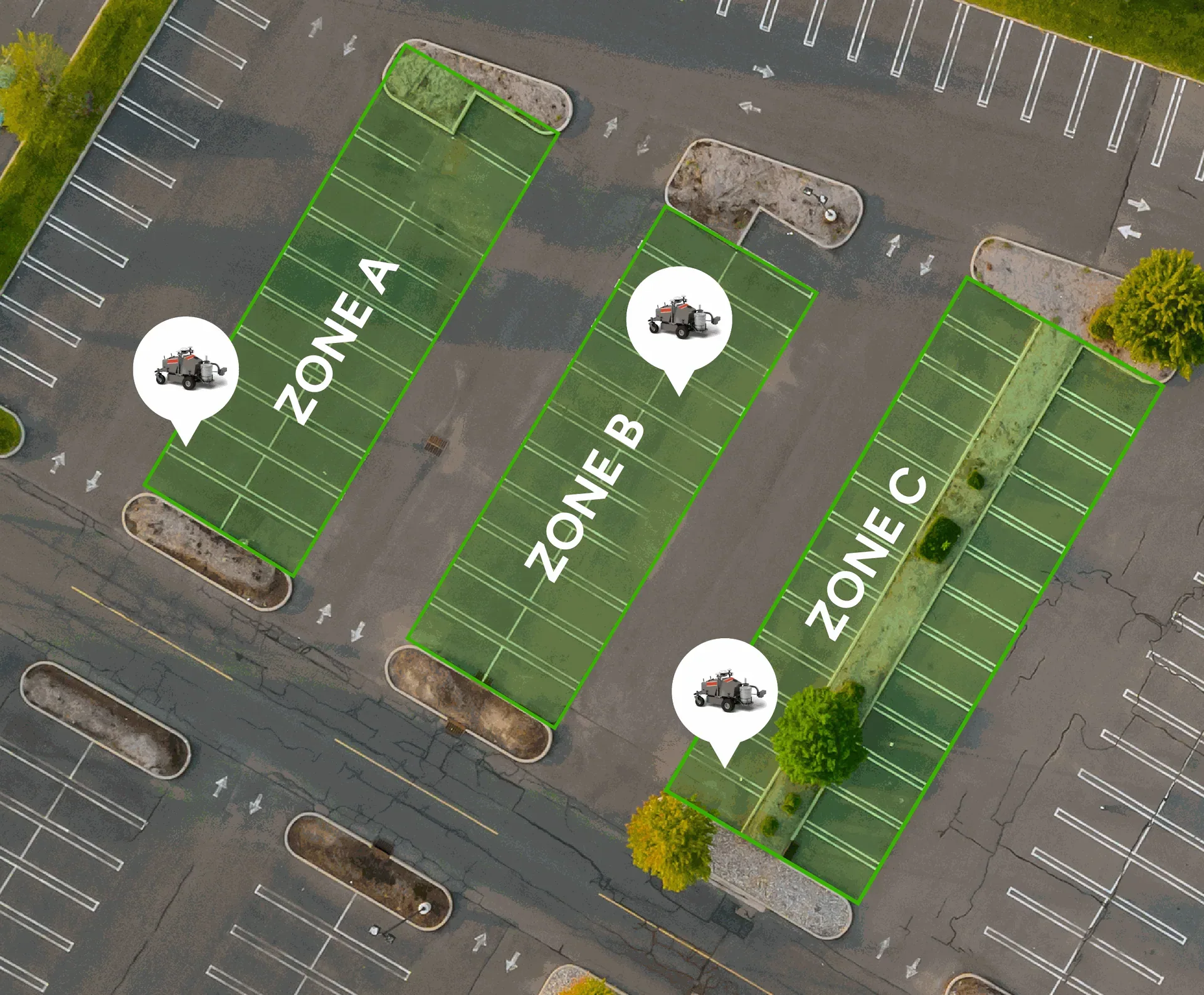

Fleet Management
Coordinate multiple robots across large parking lots and multi-zone projects.
From Plan to Painted Lines
A connected workflow from site scan to finished striping.
- Scan — capture the site with the FJD Trion S2 Max scanner.

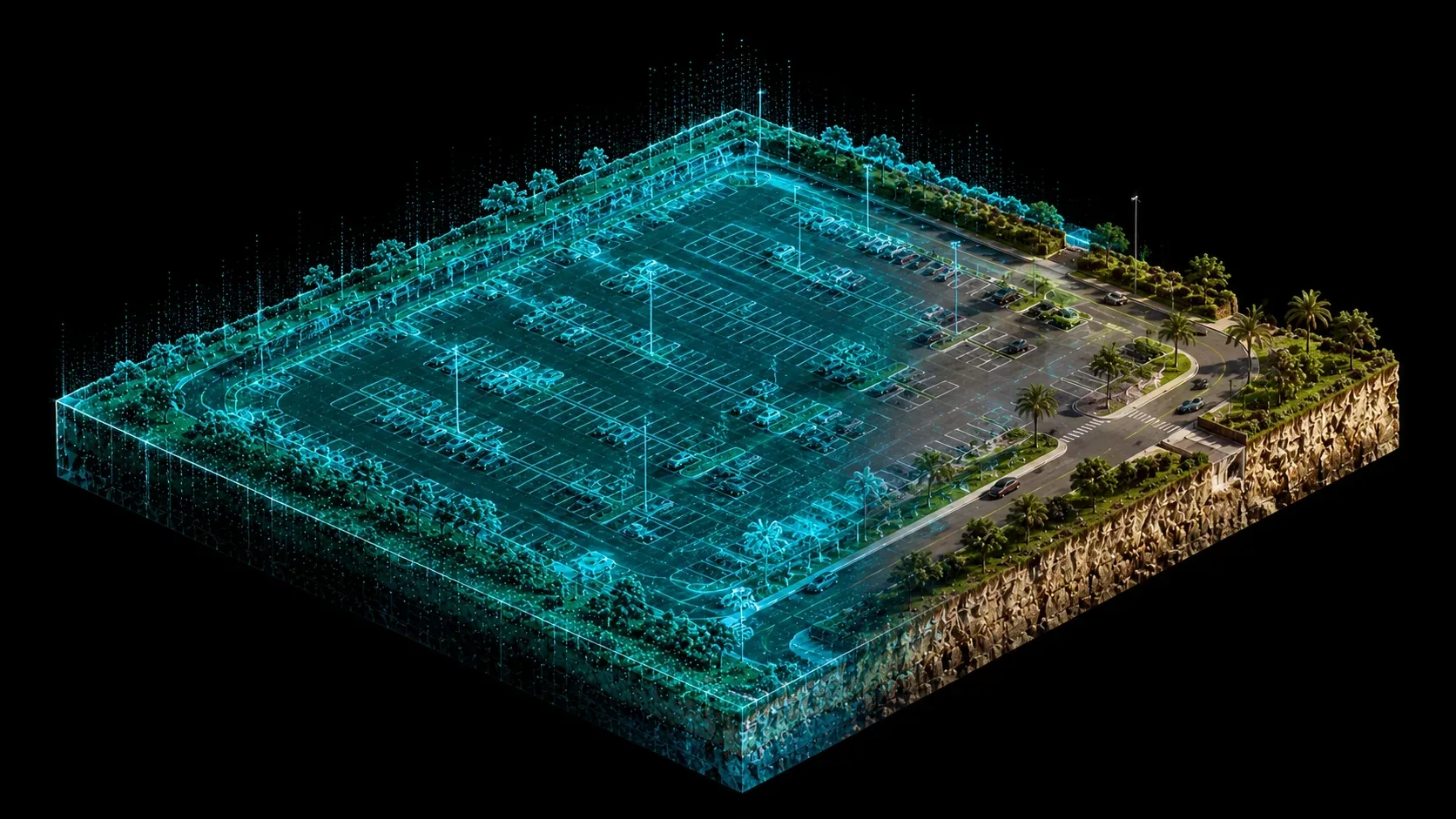

- Reconstruct — build an accurate digital layout from the scan data.

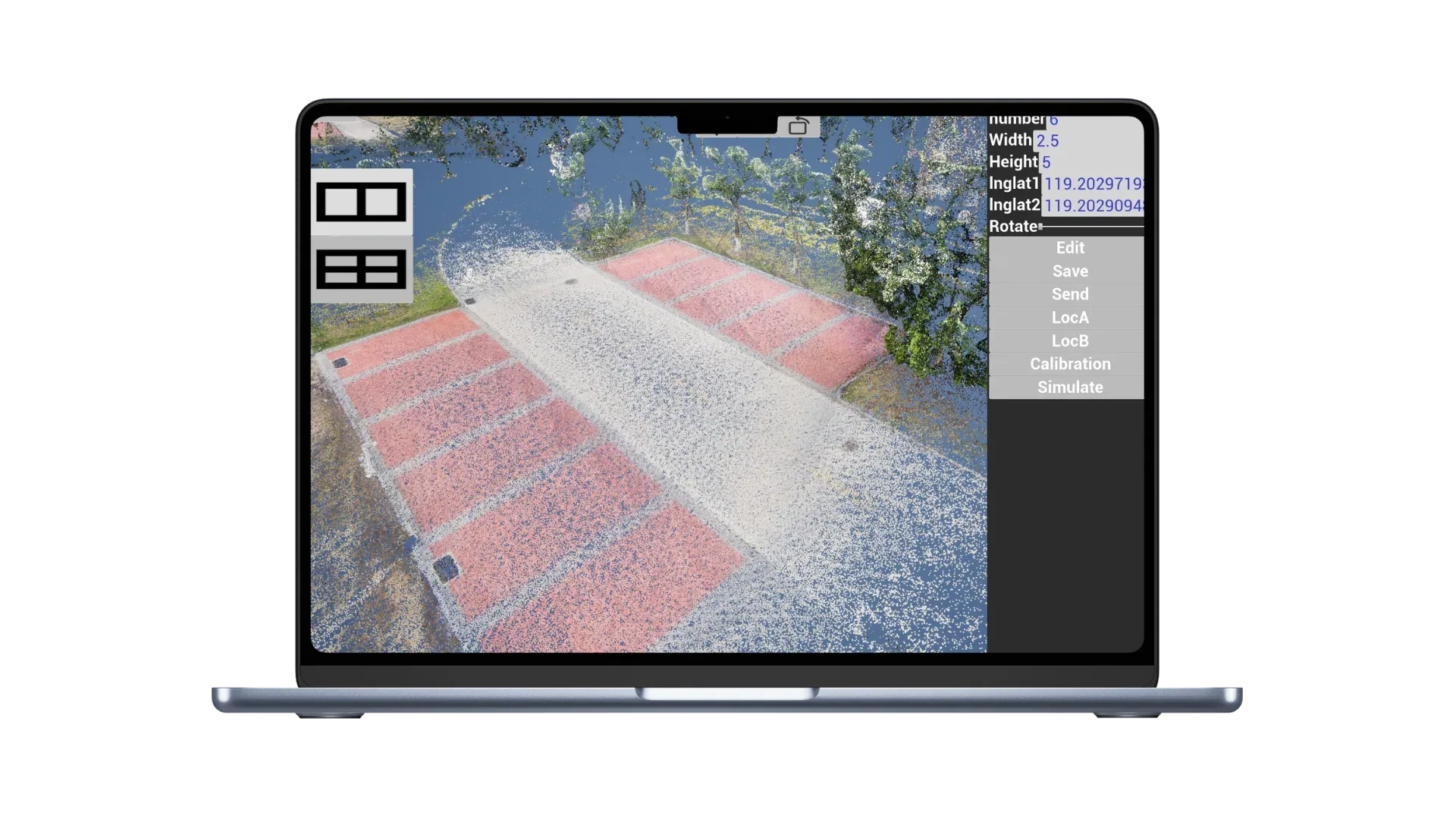

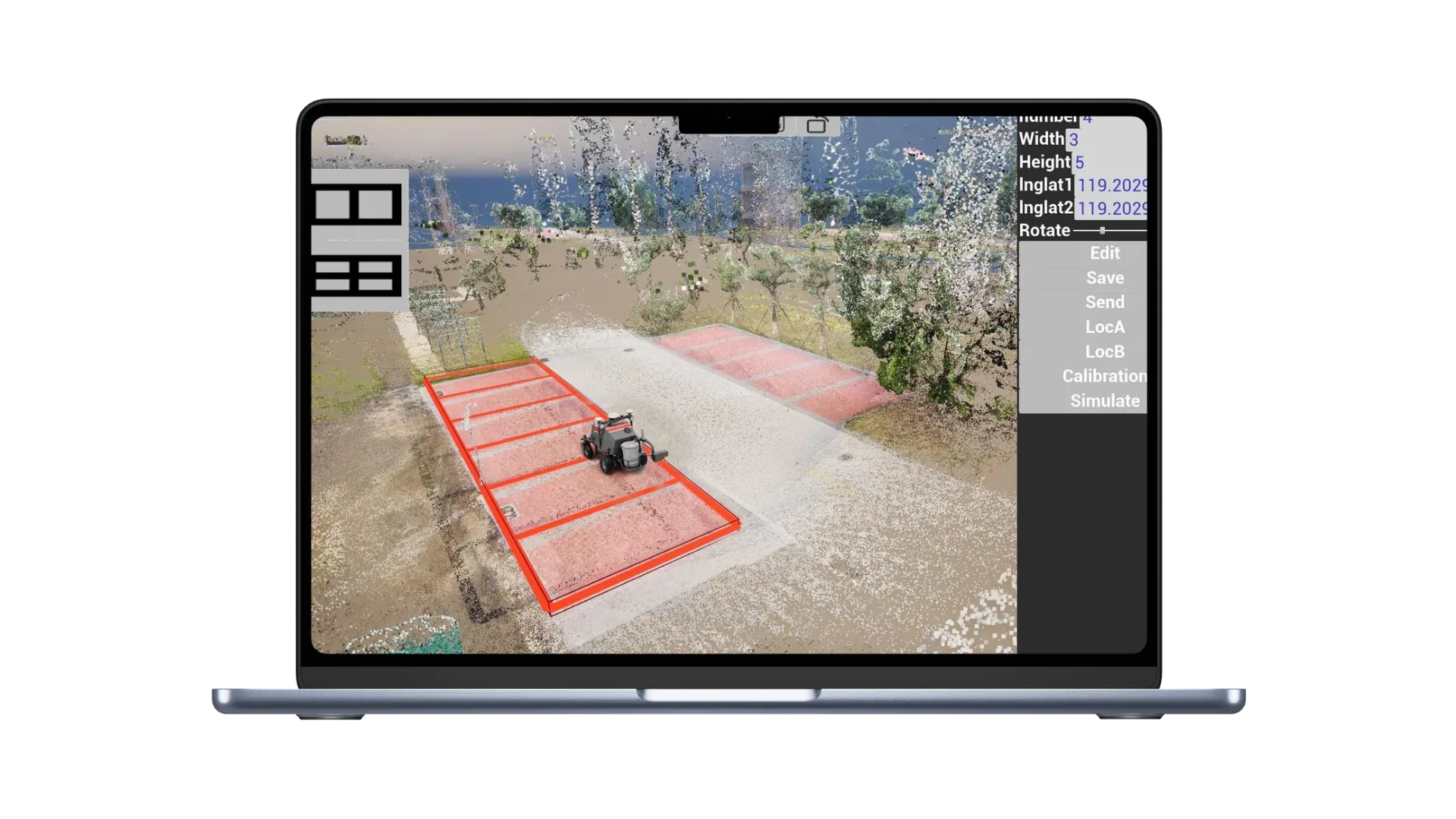

- Simulate — preview the marking plan before work starts.
- Align — verify reference points and correct site deviations.
- Stripe — the robot follows the approved path automatically.
- Complete — review the finished job and keep records.
Performance Metrics
Measured results from real deployments.
- Up to 80%+ less labor.
- Up to 5x faster striping.
- Up to 50%+ lower maintenance cost.

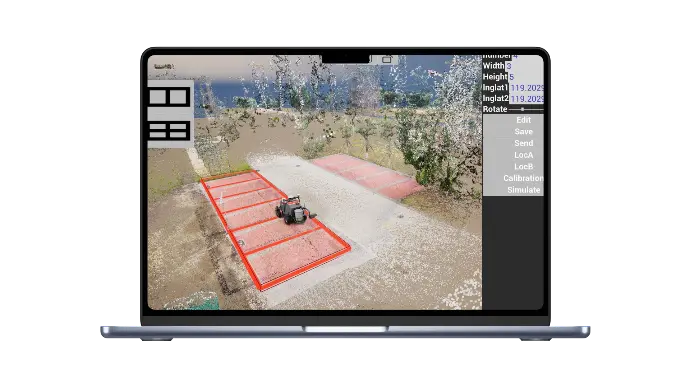

Built for new layouts and existing-line repainting.
Create parking stalls, arrows, access aisles, no-parking zones, and crosswalks from scanned site data.
- Use AI vision-based alignment to follow faded line edges, centerlines, arrows, numbers, and parking space boundaries with greater consistency.
- Support standard parking lot layouts for different stall plans and site requirements.
- *Templates may be required for special symbols or custom markings.
Safety, Visibility, and ROI
360° real-time monitoring and physical collision protection help improve safety in open parking areas.
- Track machine status, striping progress, and alerts in real time through the app.

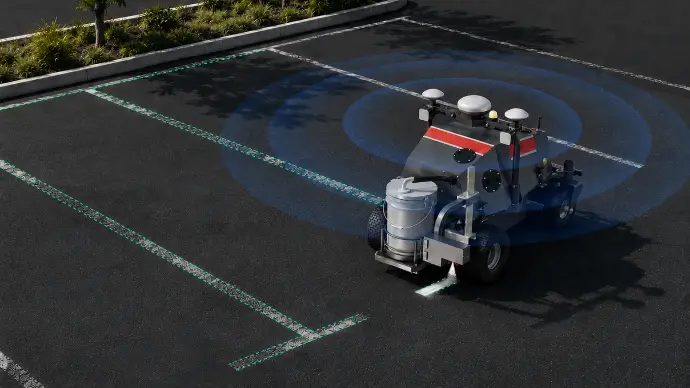

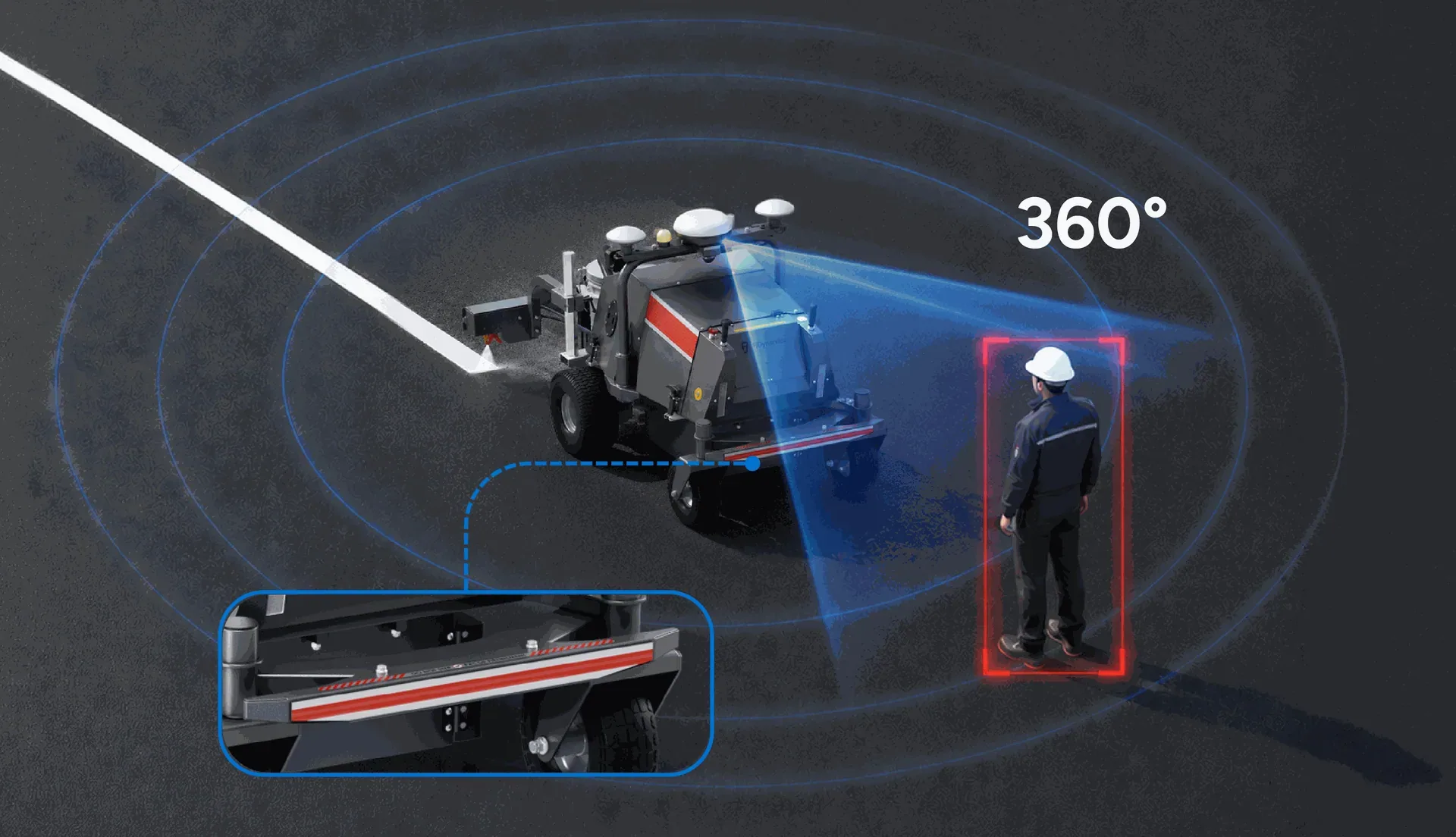

Dual-Layer Safety
360° real-time monitoring and physical collision protection help improve safety in open parking areas.

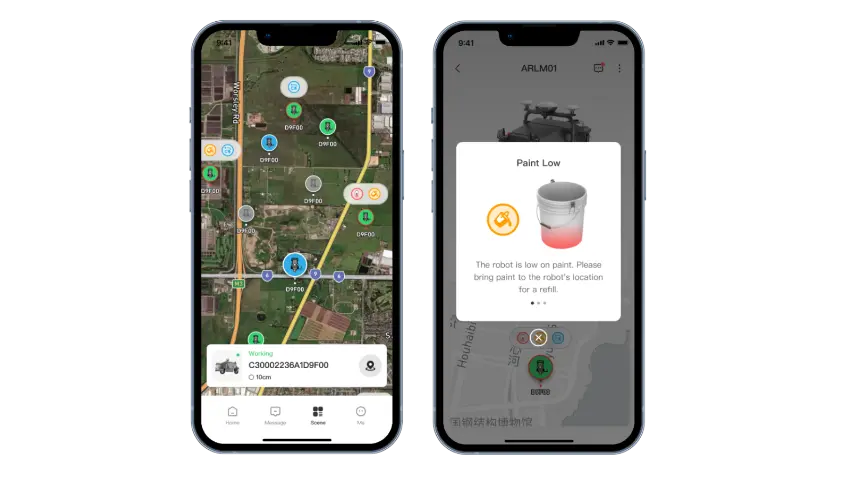

Remote Monitoring

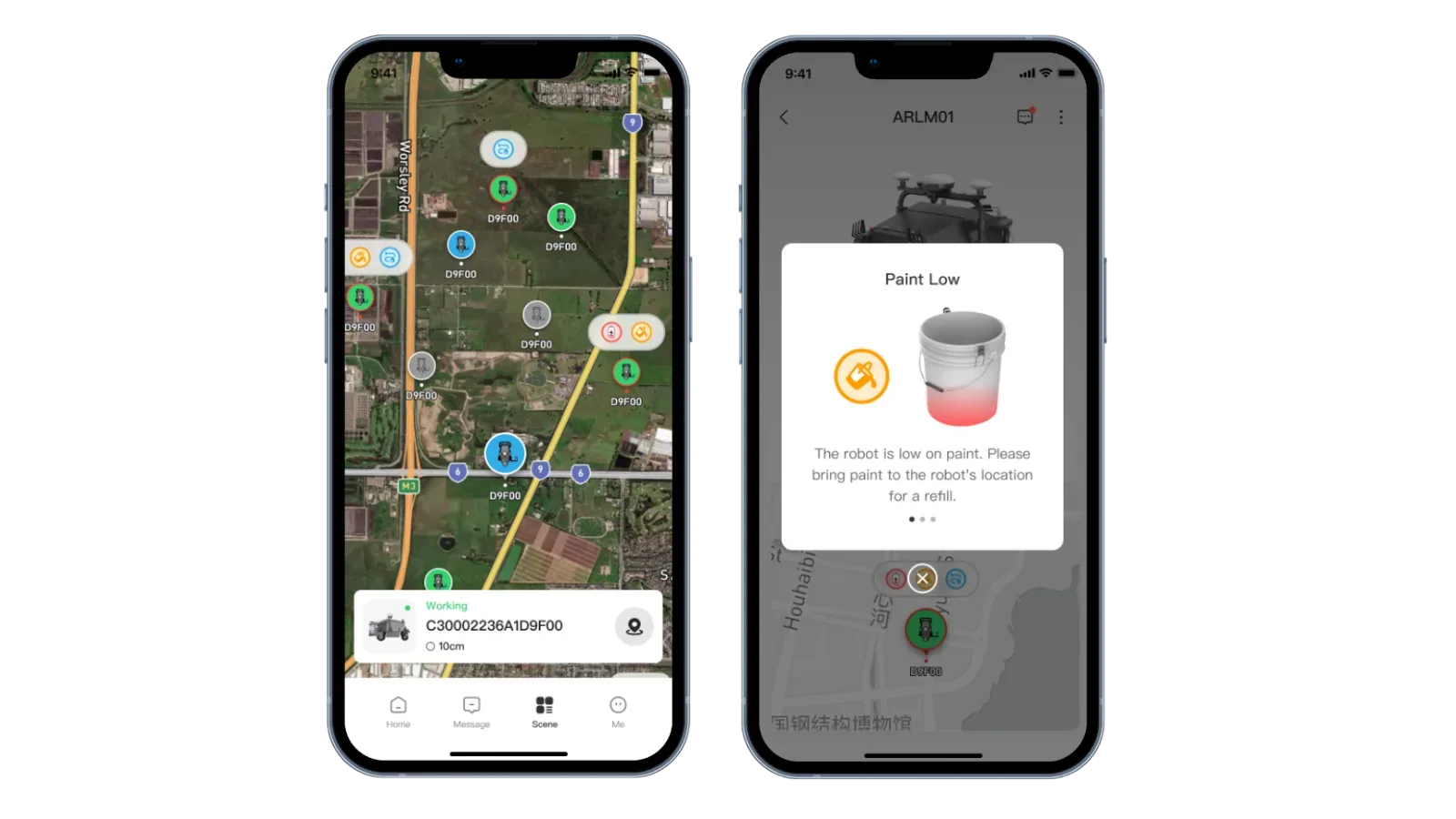

Track machine status, striping progress, and alerts in real time through the app.
Application Scenarios

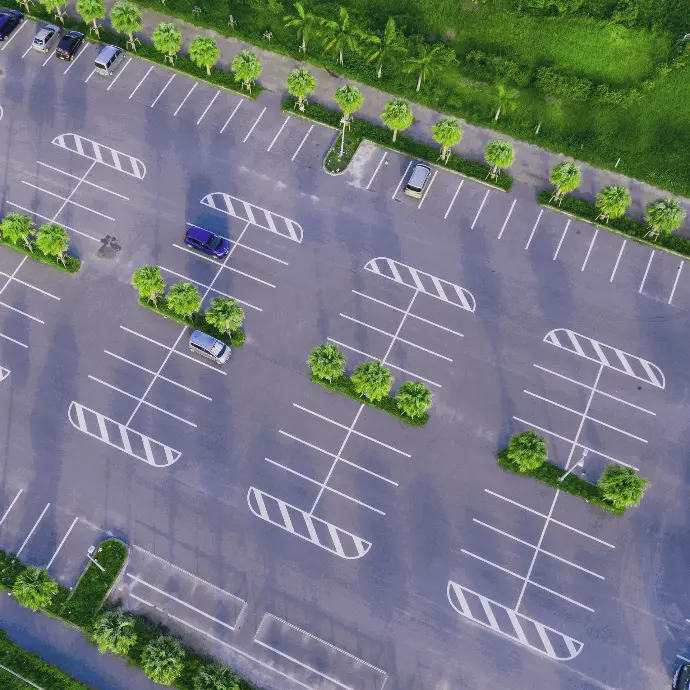

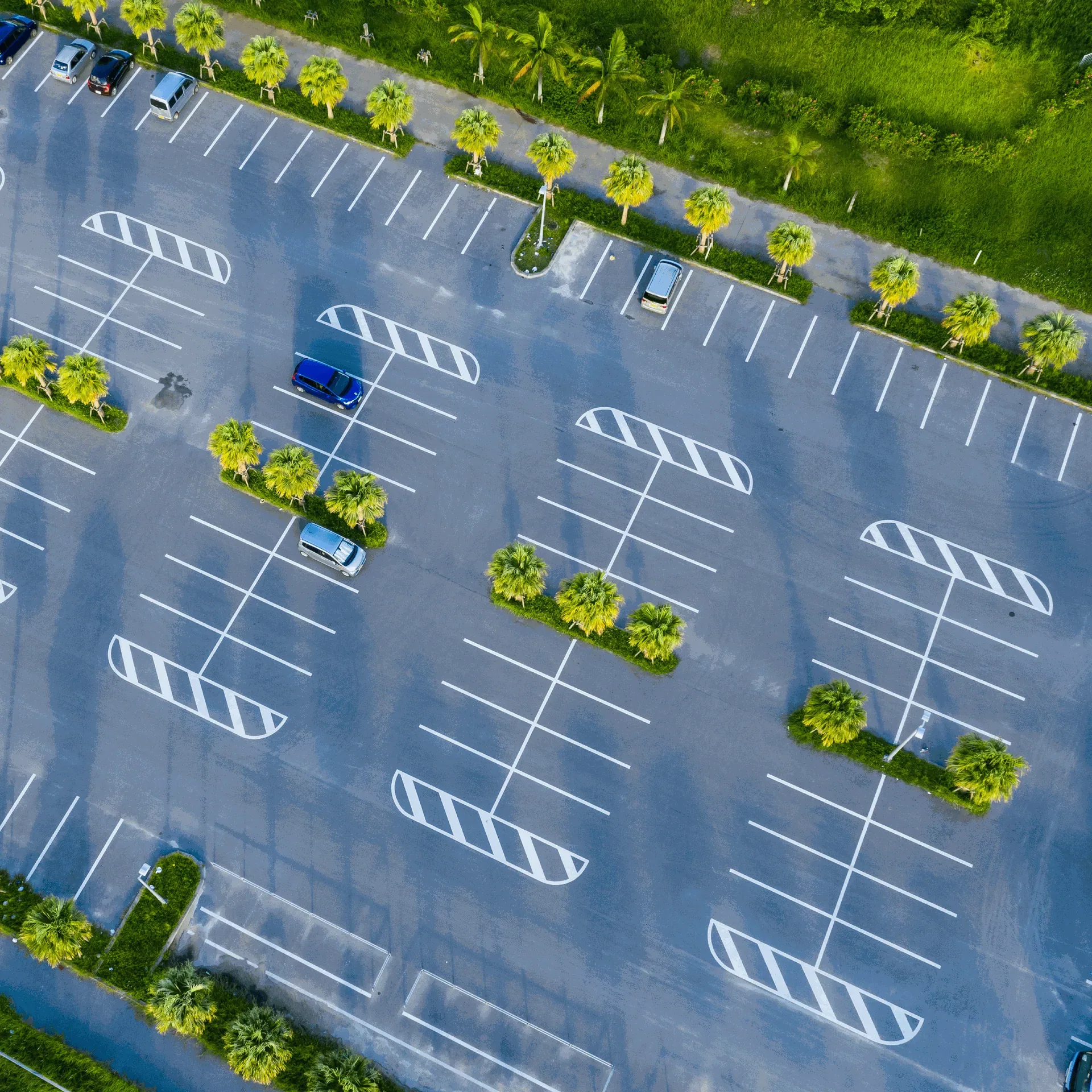

Outdoor Parking Lots

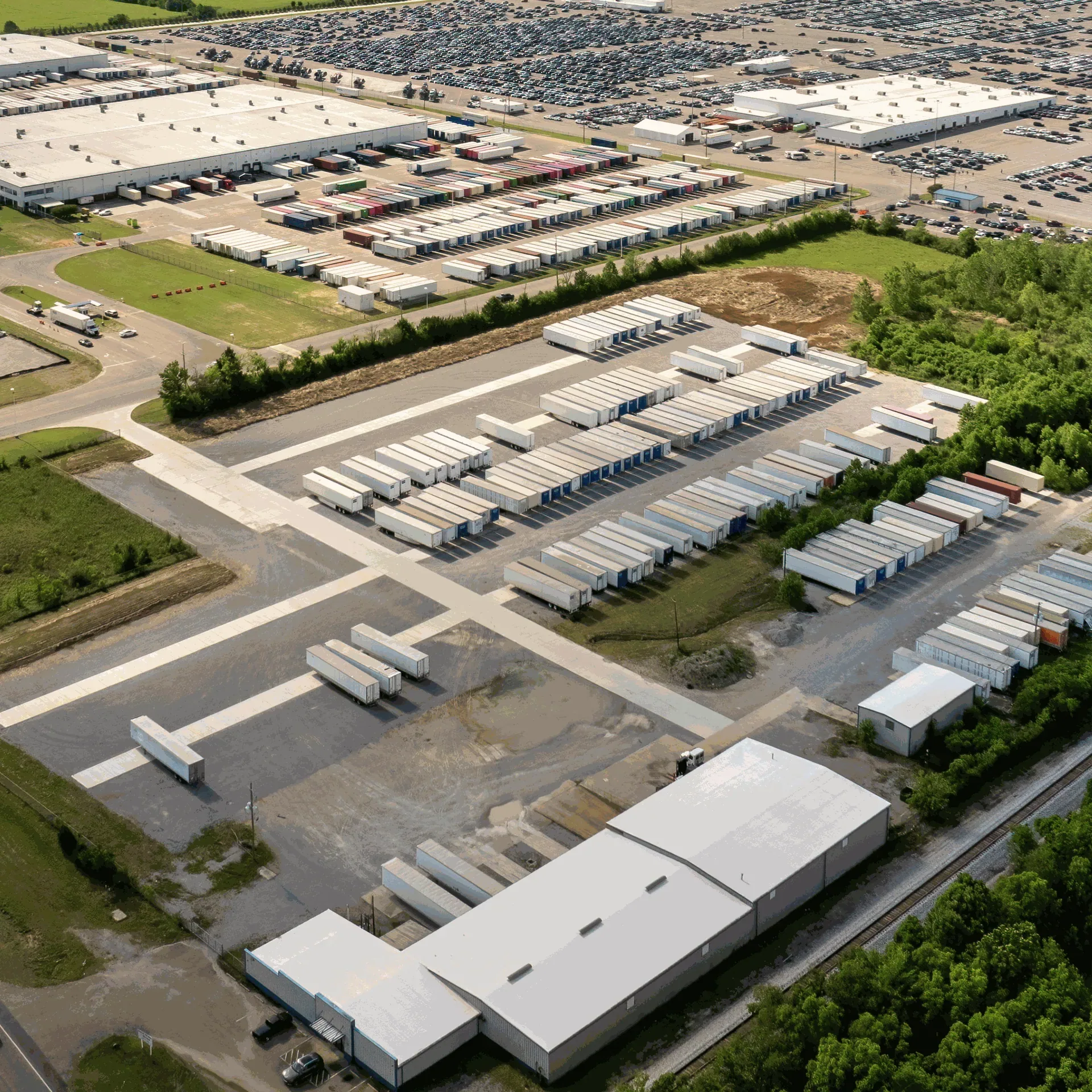

Industrial Parks & Large Facility Sites

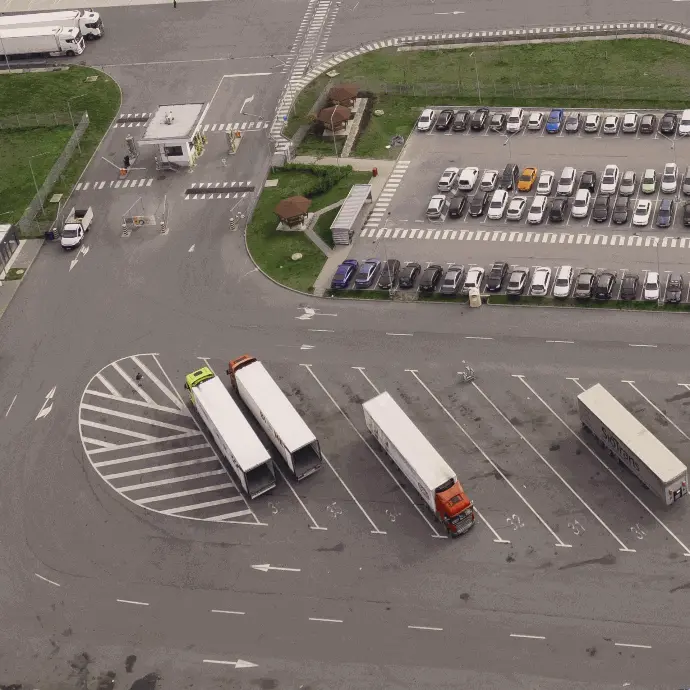

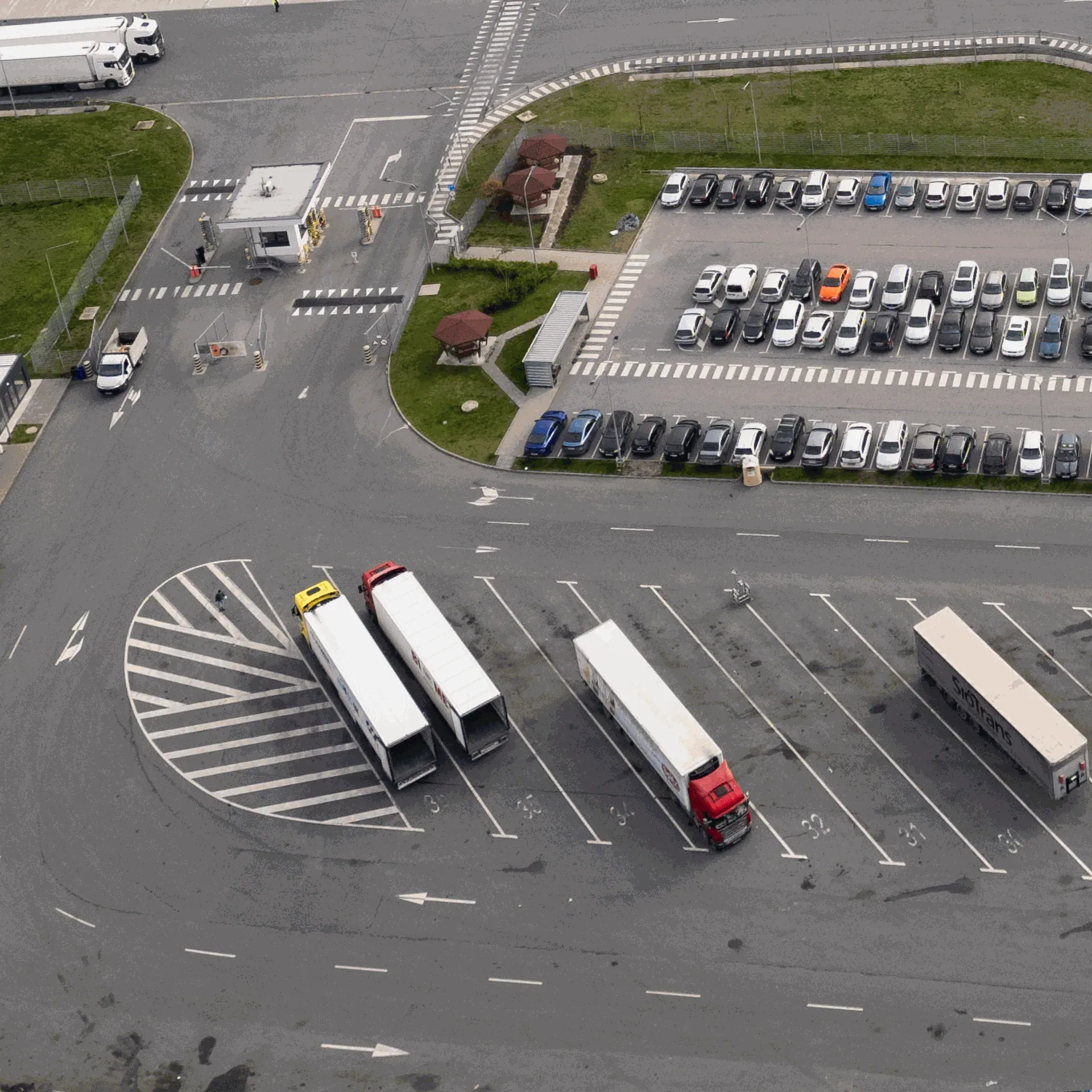

Logistics Parks & Loading Areas
Specifications
Manufacturer figures from FJDynamics, shown in metric.
Complete Unit
- Weight
- 210 kg
- Dimensions
- 1540 x 1215 x 980 mm (60.6 x 47.8 x 38.6 in.)
- Software Updates
- OTA
- Connectivity
- 4G, wireless connection
- Water Resistance Rating
- IPX4
- Operating Temperature
- 5-35 °C
Line Marking System
- Line Width Adjustment Range
- 10-25 cm (3.9-9.8 in.)
- Marking Speed
- 1-4 km/h
- Paint Tank Capacity
- 19 L
- Maximum Flow Rate
- 2 L/min
- Maximum Pressure
- 20 MPa
Battery & Charging
- Battery Voltage
- 48 V
- Battery Capacity
- 4 kWh
- Runtime
- 6 h
- Charging Time
- 4 h
- Quick-Swap Battery
- Supported
See the PaintMaster Parking on your turf.
SmartTurf demonstrates, deploys and supports every machine we sell, here in New Zealand. Book a demo on your own site and see the numbers for yourself.
