Effortless Control, Consistent Cut
Adjust speed, mowing frequency, and blade sharpening in seconds—right on the screen.
- Use buttons or the lever, and switch between two preset speeds on the go.
- Four-way floating heads follow contours for a cleaner, more even cut.
- 8° front-to-rear and 4° left-to-right float help reduce scalping and keep cuts uniform.

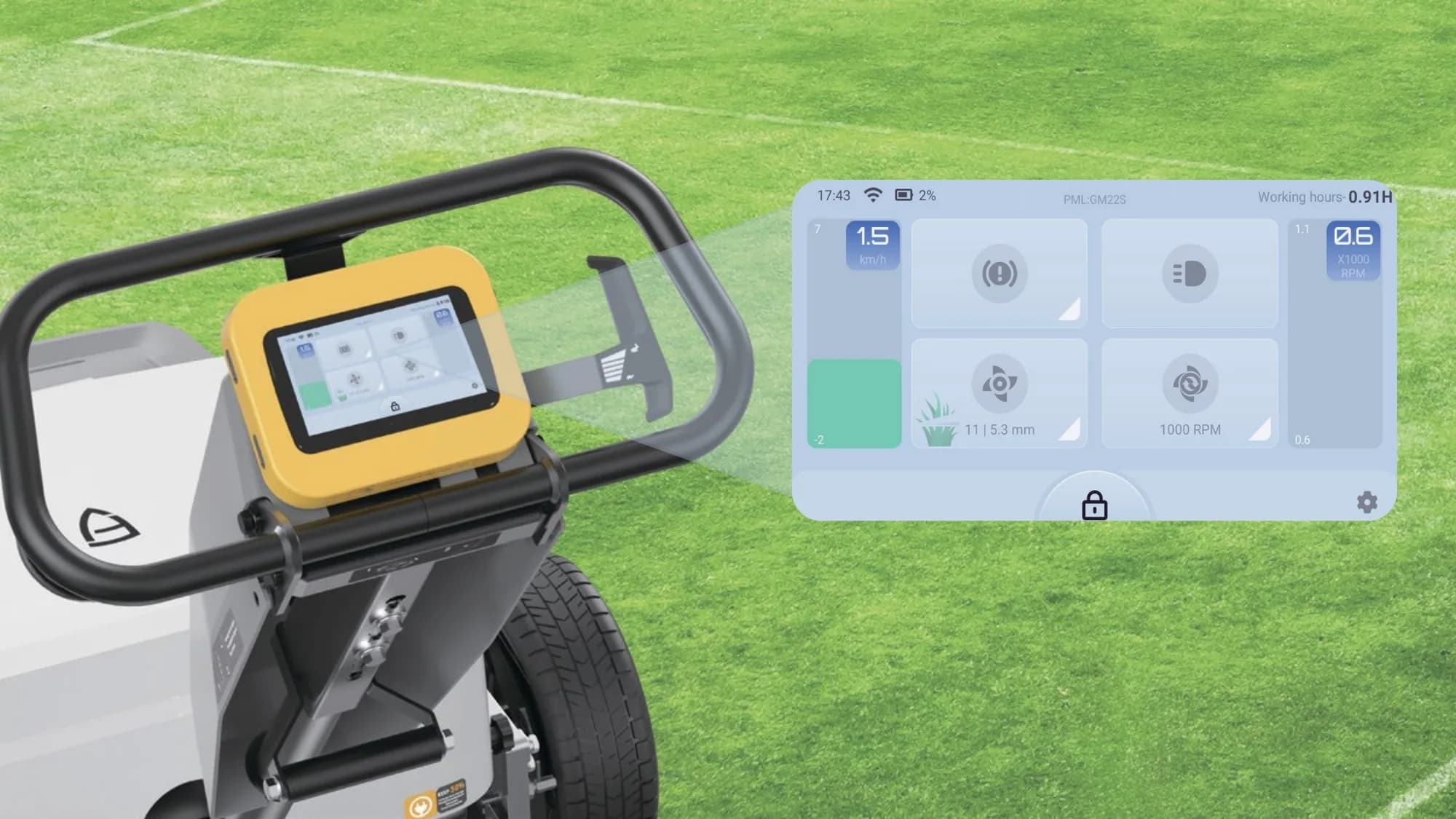

Touchscreen Control
Adjust speed, mowing frequency, and blade sharpening in seconds—right on the screen.

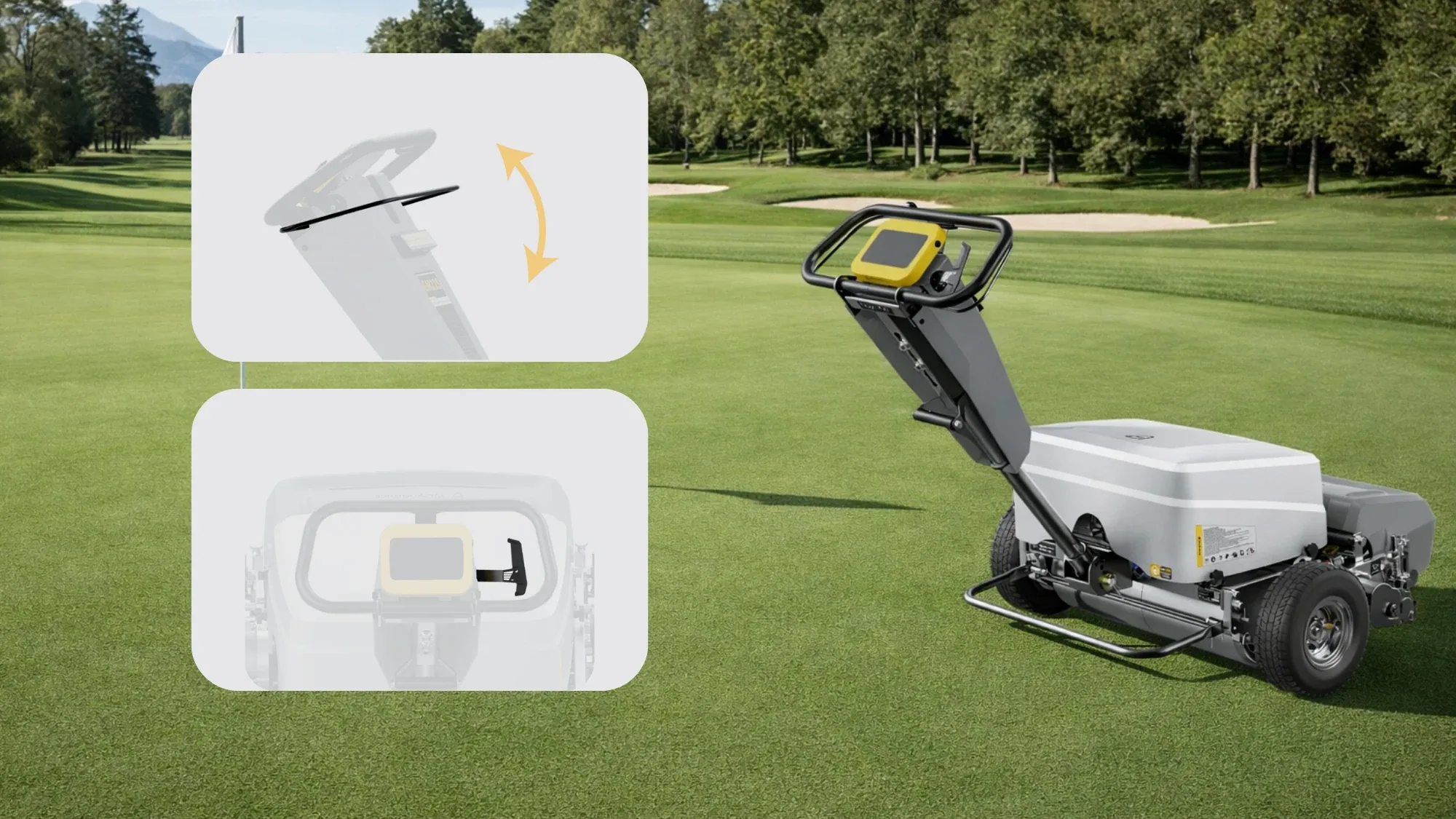

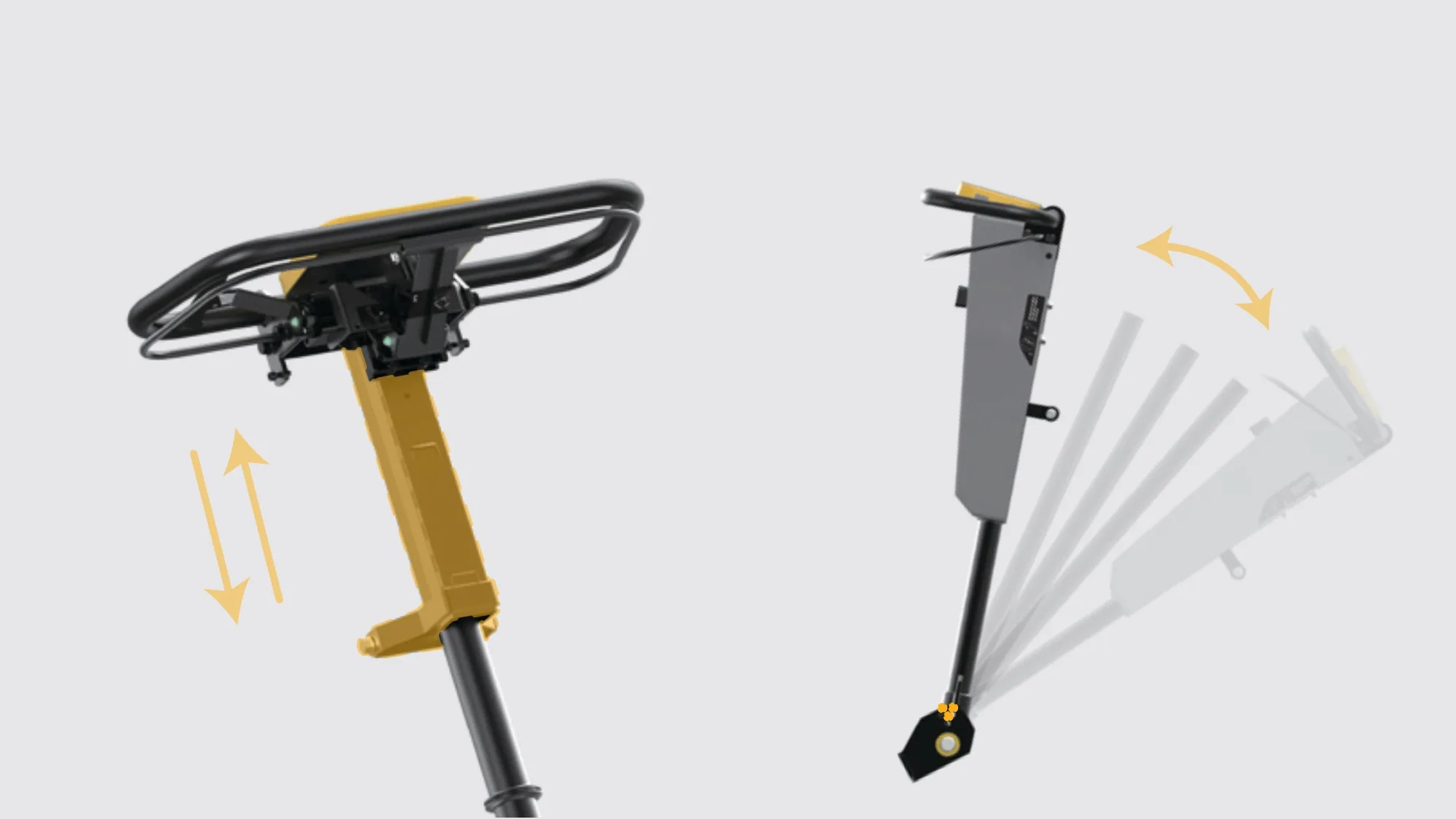

Dual Walking Mode
Use buttons or the lever, and switch between two preset speeds on the go.
Floating Cutting Heads
Four-way floating heads follow contours for a cleaner, more even cut.

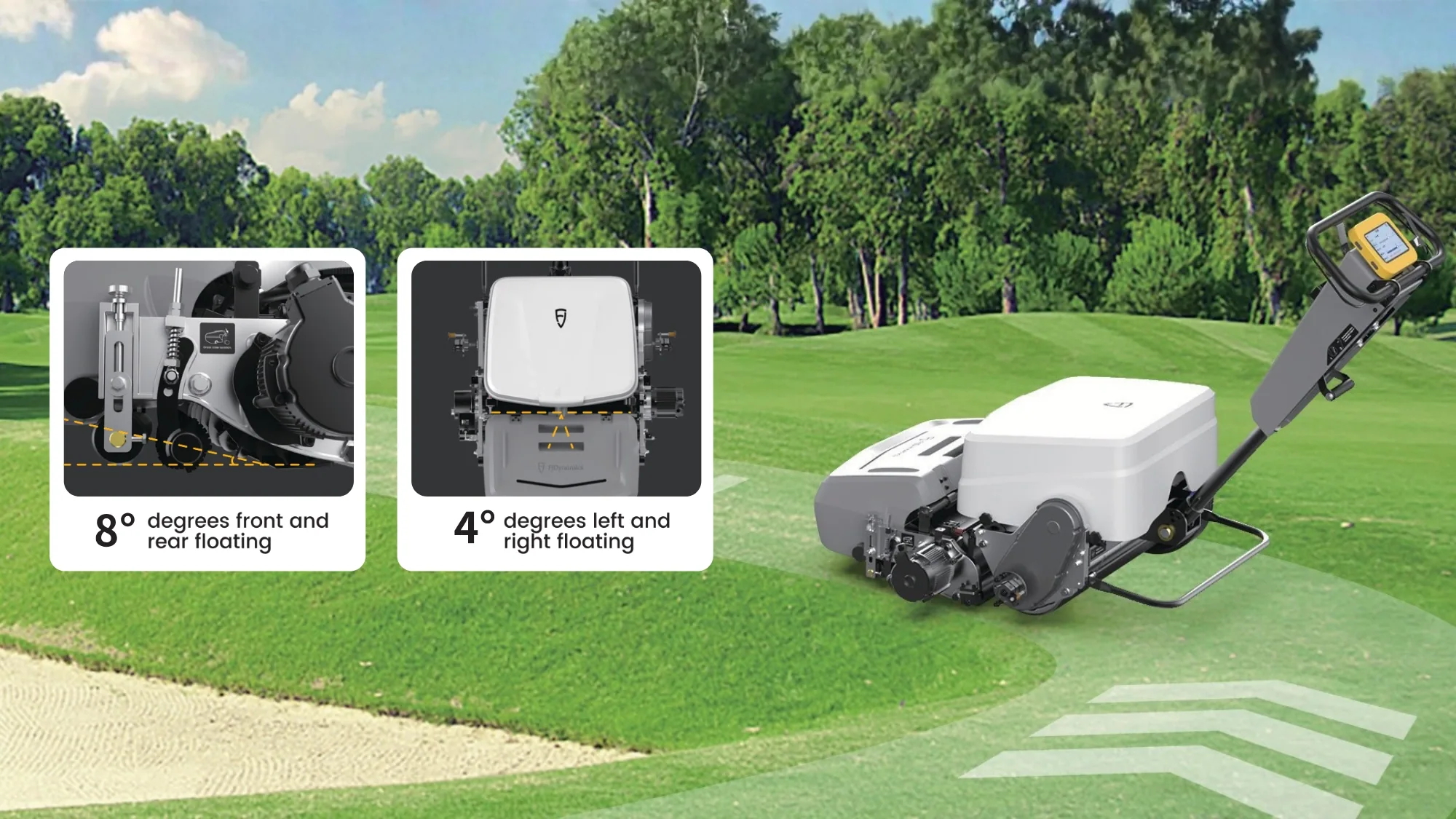

Precision Float Angles
8° front-to-rear and 4° left-to-right float help reduce scalping and keep cuts uniform.
Hassle-free Maintenance
Set your cutting height, and GM22S automatically recommends the ideal blade speed and mowing frequency for consistent results—no guesswork.
- Sharpen blades right on the machine—no extra tools needed. Save daily prep time and reduce wear for longer blade life.
- A pure electric drive eliminates engine upkeep—less service, fewer consumables, and lower maintenance costs over time.

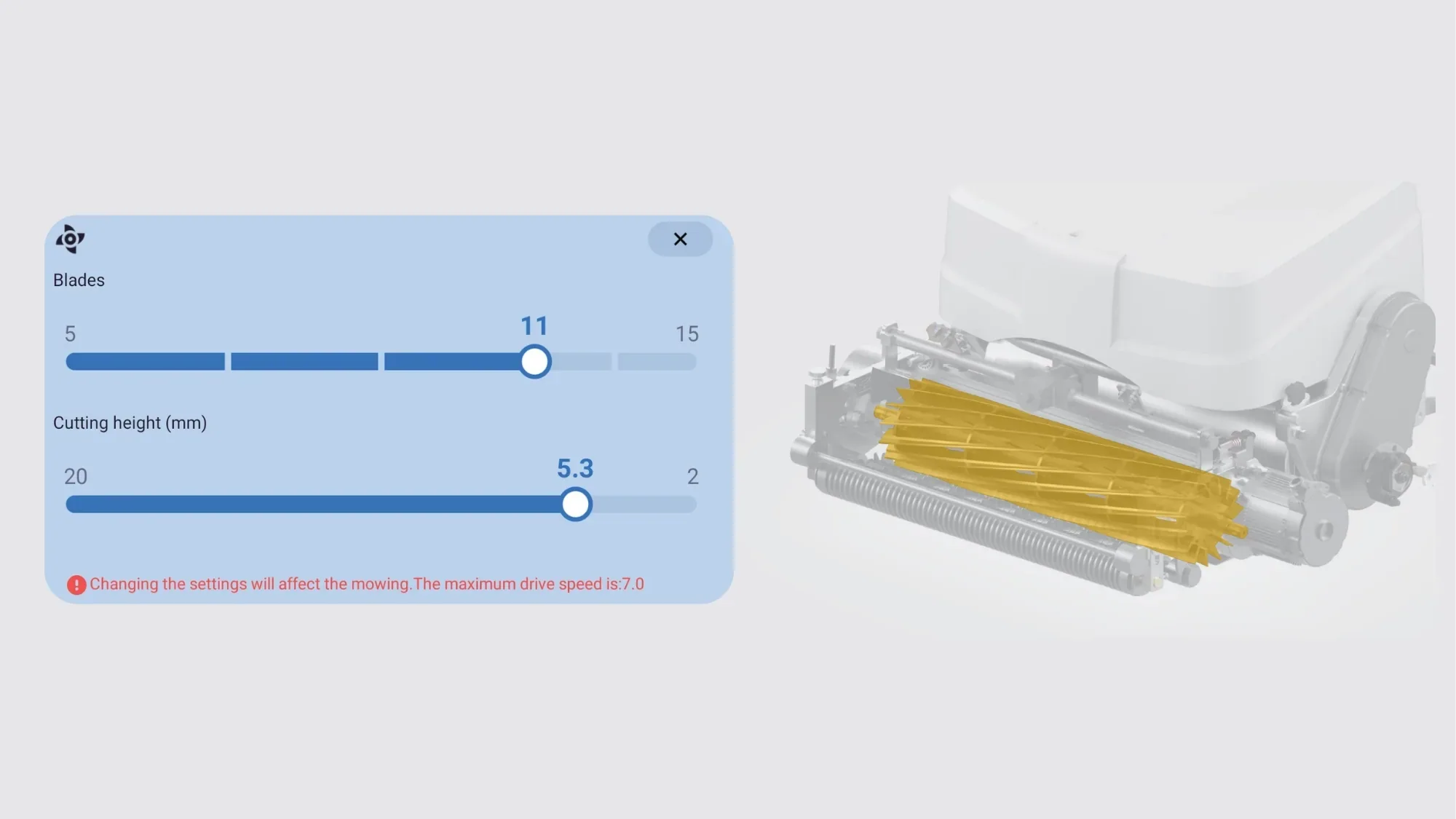

Smart Parameter Settings
Set your cutting height, and GM22S automatically recommends the ideal blade speed and mowing frequency for consistent results—no guesswork.

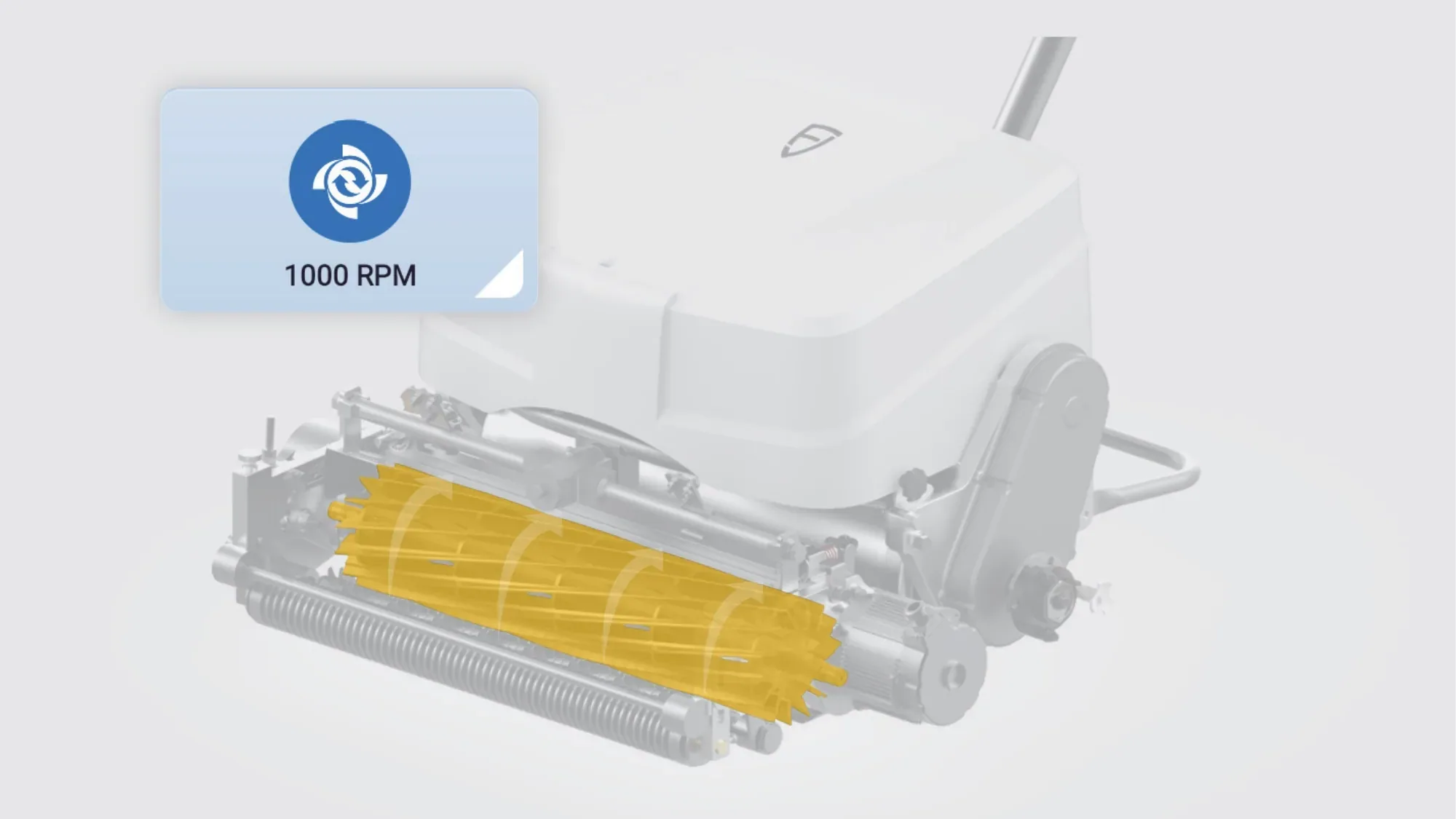

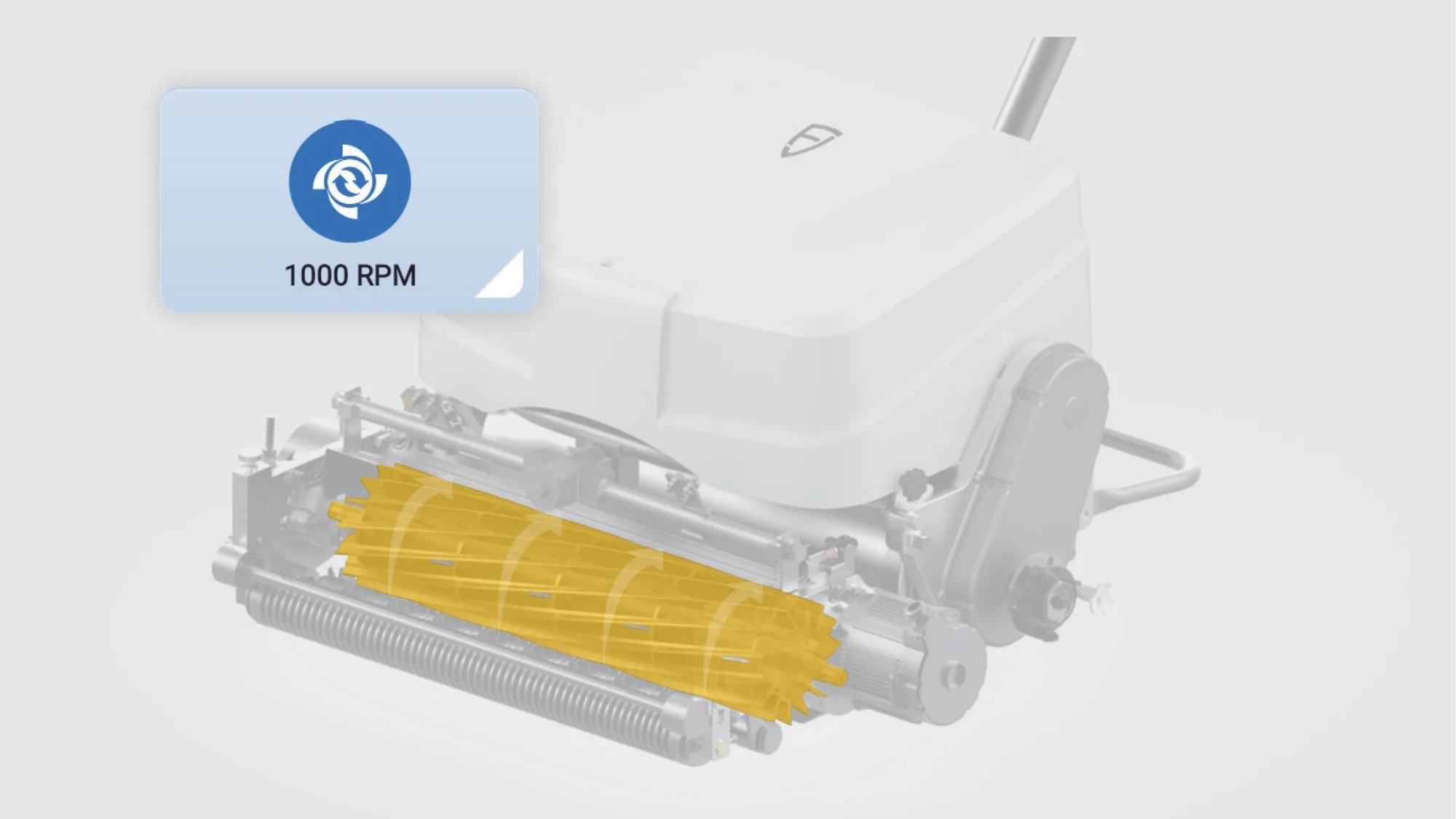

One-Tap Reverse Sharpening
Sharpen blades right on the machine—no extra tools needed. Save daily prep time and reduce wear for longer blade life.
Eco-friendly and Energy-saving
A pure electric drive means gas-mower savings without the fumes, noise, or maintenance.

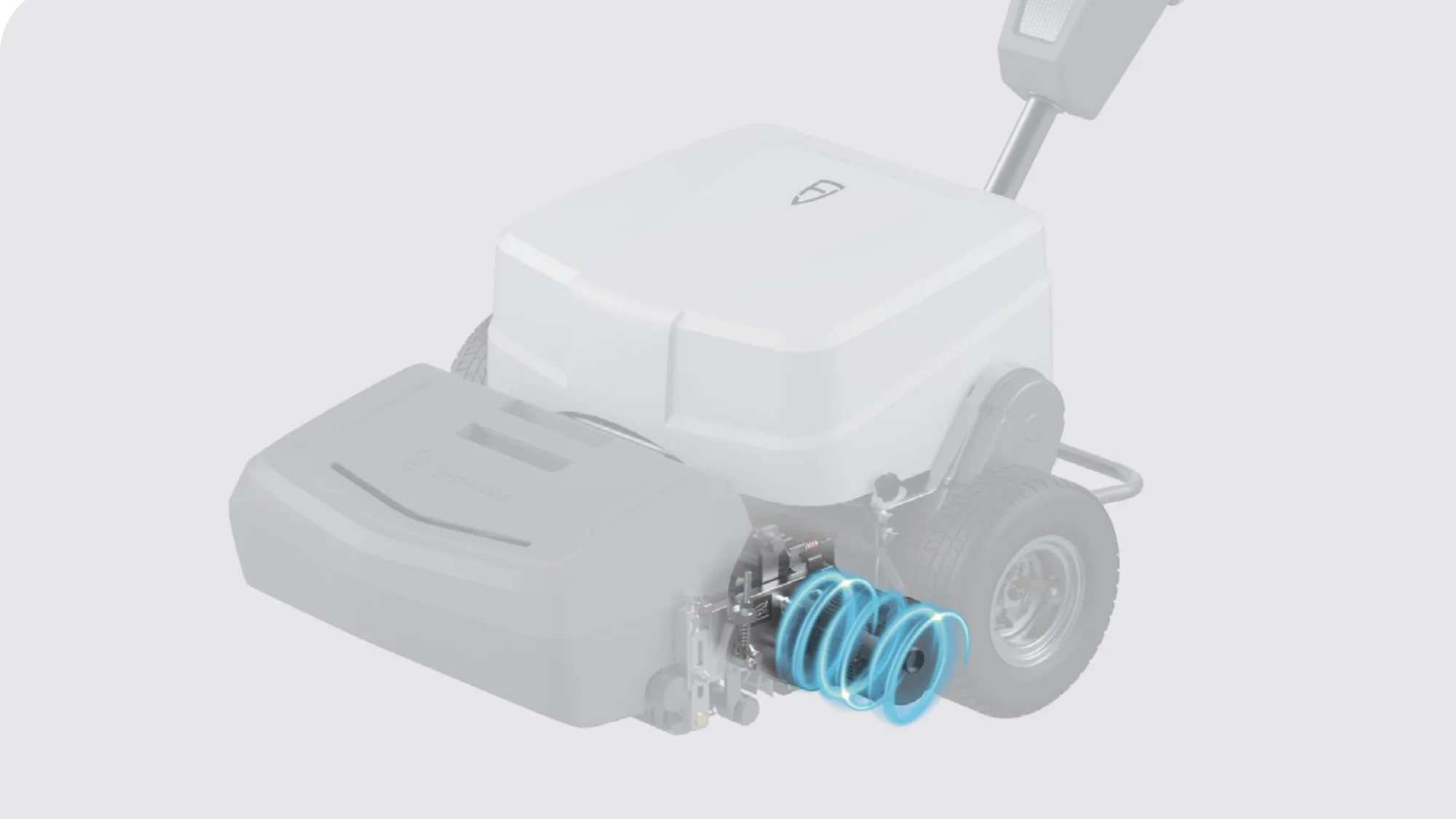

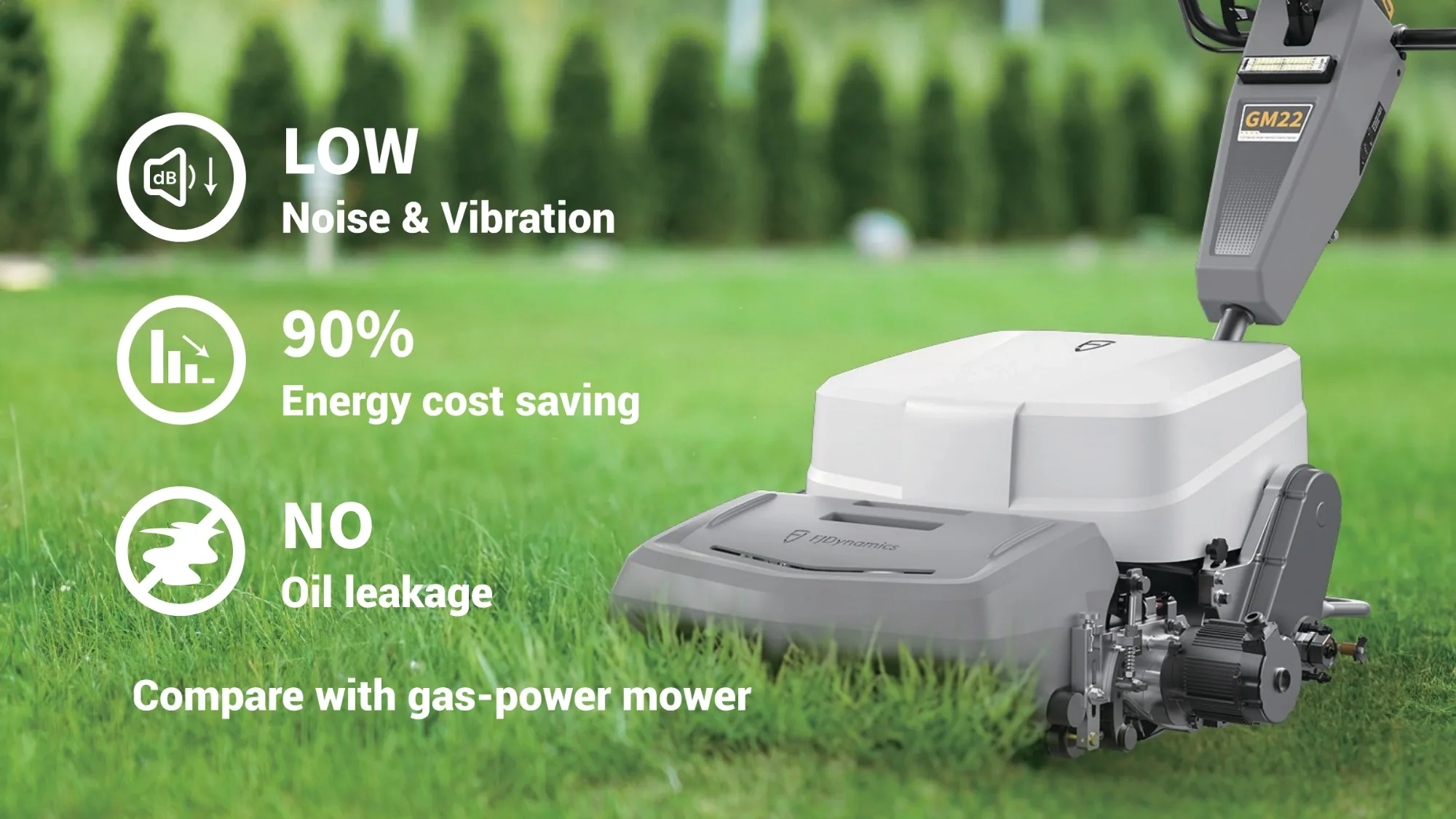

Pure Electric Drive
Low noise and vibration, 90% lower energy cost, and no oil leakage compared with a gas-power mower.

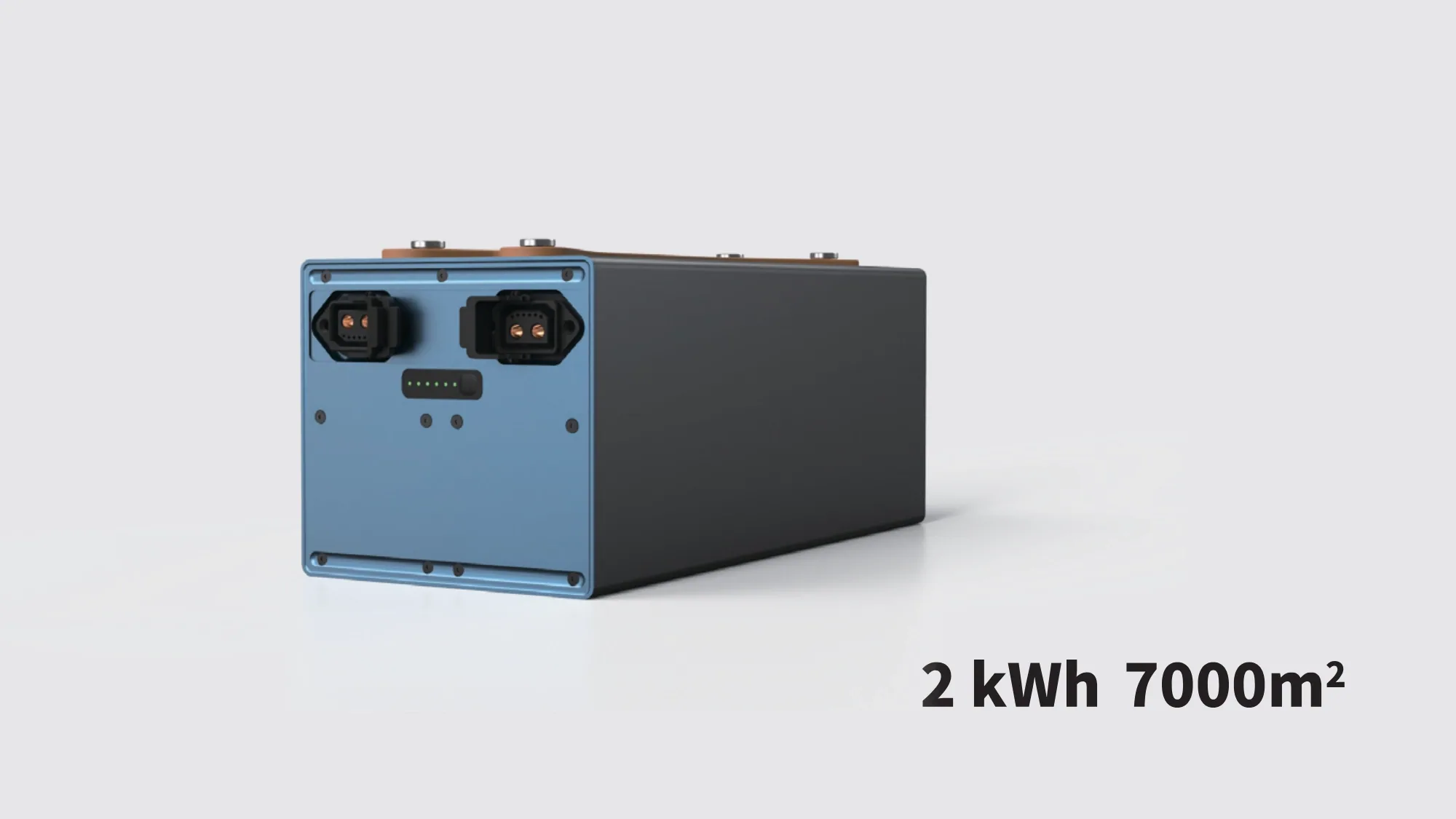

High-Capacity Battery
2 kWh battery covers up to 7,000 m² on a single charge.
Application Scenarios
Sports Field
Golf Course
Private Garden
Specifications
Manufacturer figures from FJDynamics, shown in metric.
Mowing Capacity
- Max mowing area per full charge
- Max 5574 m²
- Grass catcher capacity
- 20L
Complete Unit
- Weight (with battery)
- 115kg
- Size (highest lever)
- L1200 × W908 × H1200 mm
Cutting System
- Cutting width
- 559 mm
- Number of blades
- 8 / 11 / 14
- Cutting height
- 2-20 mm 3-25 mm 5-25 mm
Mobility
- Walking Speed
- 0-7 km/h
- Wheel Size
- 11 inch
Power & Electrical
- Voltage
- 48V
- Battery Capacity
- 2 kWh
- Horse Power
- 8 HP
Connectivity & HMI
- Screen Size & Resolution
- 5 inch (1280 × 720)
- OTA
- Supported
- WiFi
- Supported
See the GM22S on your turf.
SmartTurf demonstrates, deploys and supports every machine we sell, here in New Zealand. Book a demo on your own site and see the numbers for yourself.
